CNC guillotine Steel sheet hydraulic plate shear machine Sheet metal cutting equipment

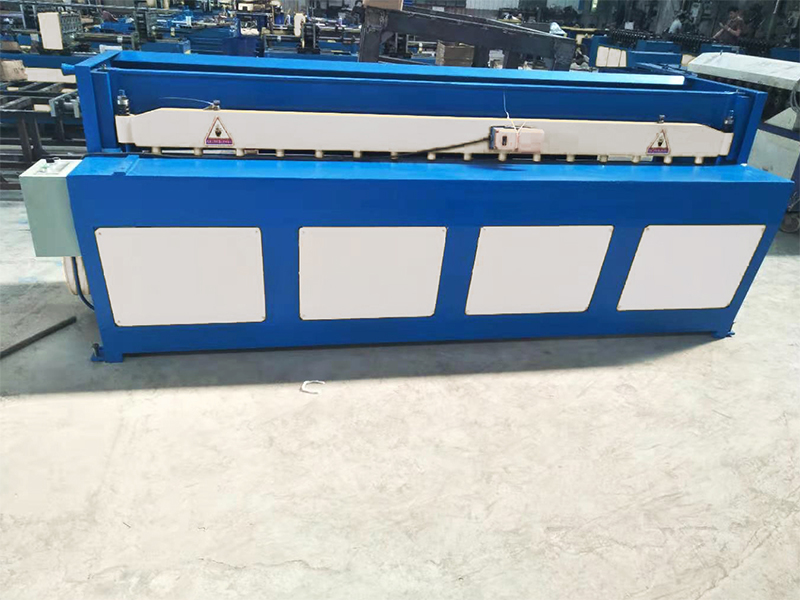

The electric plate shearing machine, with reasonable mechanism, reliable performance, novel mechanism and high shearing accuracy, is a green environmental protection product with low noise. Features: 1: energy saving 2: without mechanical clutch and hydraulic system, it is durable and saves a lot of maintenance links. 3: it operates when cutting, and the whole machine is in static state when not cutting, saving energy and electricity. 4: electric shear, back shear, continuous shear, single shear. 5: the handle can quickly adjust the blade clearance. 7: the blade is not easy to be damaged. 8: the whole machine is flexible and fast in operation. 9: transmission mode: after the reducer is driven by the internal cone self-locking motor, the eccentricity on the main shaft is driven by the sprocket to move up and down, so it is changed into various shearing actions.
|
Model No. |
Max Coil Width |
Max Shear Thickness |
Power |
Cutting angle |
No.of strokes (times/min) |
Dimensions (L*W*H) |
|
Q11-2*1300 |
1300 mm |
2 mm |
3 kw |
1°30′ |
30 |
2100*900*1100 mm |
|
Q11-2*2000 |
2000 mm |
2 mm |
3 kw |
1°30′ |
30 |
2700*900*1100 mm |
|
Q11-2*3200 |
3200 mm |
2 mm |
4 kw |
1°30′ |
30 |
3900*900*1100 mm |
