Product Description

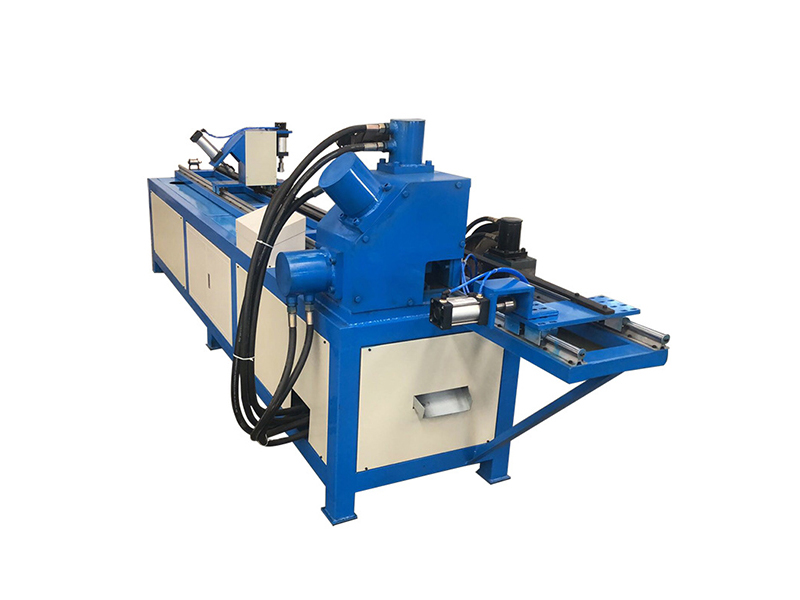

Square duct angle steel flange machine,CNC angle steel flange production line
Function
Fully automatic angle steel flange production line, or CNC angle steel flange production, is mainly for punching and cutting d automatically duct angle steel flange.The machine are designed to feed, punch, cut automatically in order to save labor and improve effciency. lt's very fast, accurate and highly automatic.
Performance Features
- lt's controlled by servo motor and its feeding dimensions are accurate;
- It only requires to input the sizes of workpiece, how many holes to punch when programming,which is very easy to operate;
- The new design mold can complete the angle steel switching rapidly and the punch is durable.
Main configuration
Taiwan hydraulic system
Cutter and punching die which are both made of American H13 material.
Servo motor-driven feeding system
Main technical parameters
| Scale of angle steel to process | #3-#5 angle steel |
| Common punching size | big-sized 9x13mm, small-sized 4.2/5.2mm |
| The number of punches which can be installed simultaneously | 2 |
| Common length of angle steel | 6000mm |
| Machining accuracy not more than | 0.5mm |
| Feeding speed of angle steel | 15-20m/min |
| Model | SBJX-JG30-50 |
| Working range | 30/40/50 angel steel |
| Power | 5KW |
| Weight | 950kgs |
| Dimensions | 3000x1150x1380mm |
