spiral elbow duct seam welding machine
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Product Description

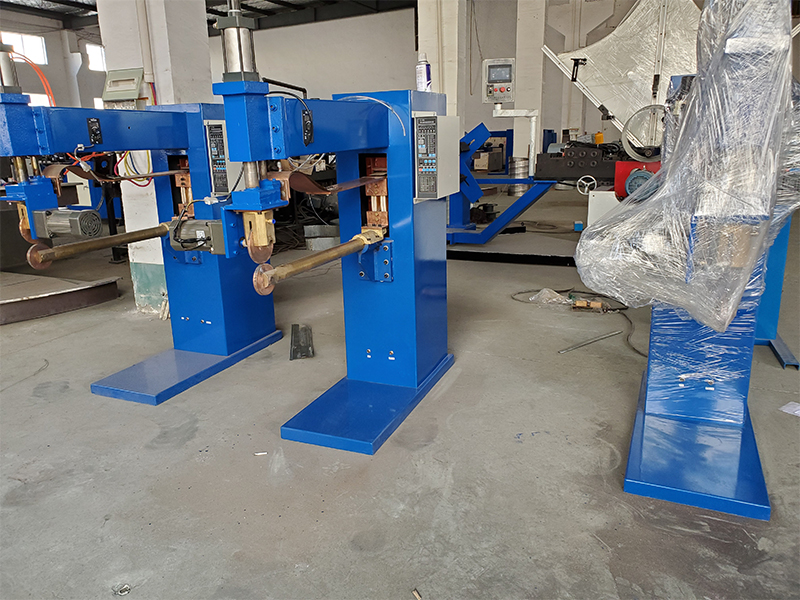

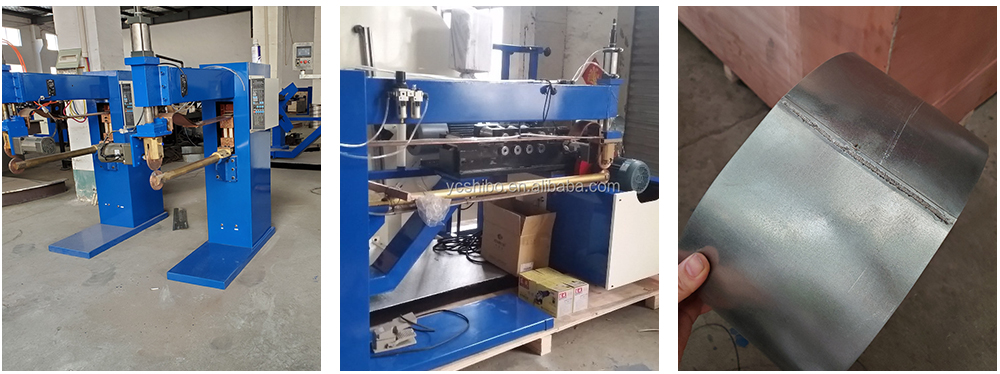

The straight seam welding machine，Mainly using for galvanized steel and stainless steel sheet welding， Widely using in metal sheet industry.
Technical Data
| Model |
FN-35 |
FN-55 |
FN-75 |
FN-100 |
|
Sheet Thickness |
0.4-1.0mm |
0.4-1.2mm |
0.4-1.5mm |
0.4-2.0mm |
|
Max Power |
45KVA |
55KVA |
75KVA |
110KVA |
|
Max Electric |
6200A |
11000A |
16000A |
26000A |
|
Max Air Pressure |
400KGF |
600KGF |
1000KGF |
1000KGF |
|
Cooling Water |
6L/min |
6L/min |
8L/min |
8L/min |
|
Welding Arm Length |
600mm |
600mm |
600mm |
600mm |
|
Stroke |
80mm |
80mm |
80mm |
80mm |
|
Welding Speed |
0.5-3m/min |
0.5-3m/min |
0.5-3m/min |
0.5-3m/min |
