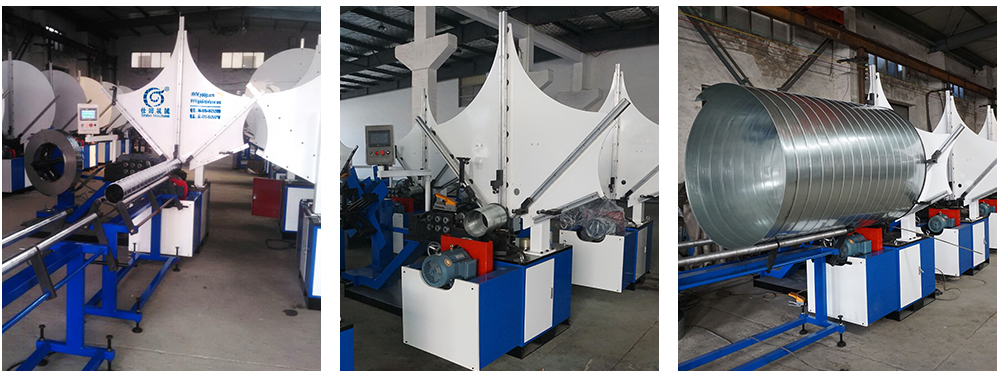

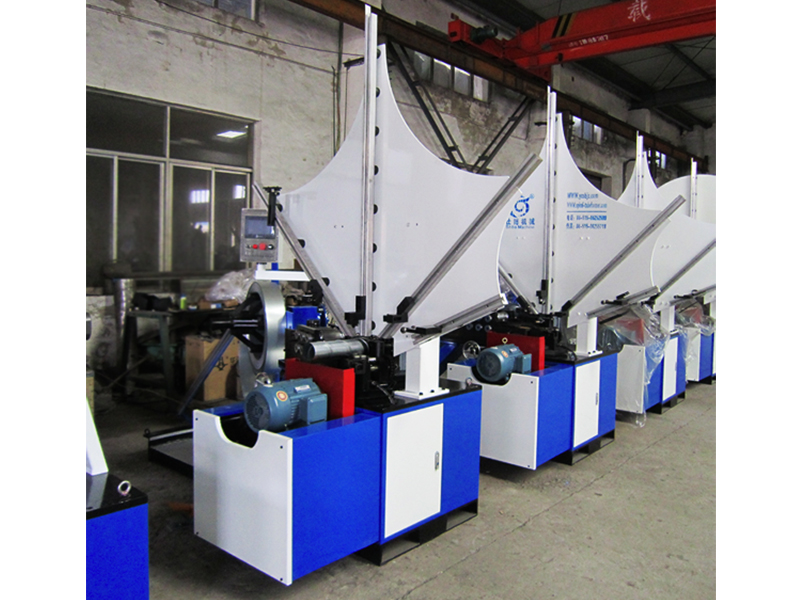

HVAC spiral duct making machine
Spiral duct machine is very widely used in spiral HVAC and sheet metal industry. The spiral duct machine working by adjusting the steel strip and replacing the steel strips of different sizes, it is possible to produce spiral tubes of different sizes, which are easy to change and adjust, and the joints are tightly connected and the performance is stable.
Feature:
Special mould for various duct diameters , easy to change and adjust, no needs crane or too much manpower
Large diameter range
High speed saw cutting and plasma cutting system
Light and small , suitable for site work .
Technical information for SBJX-1500D
| Thickness of material | Galvanized steel :0.4-1.0mm |
| Stainless steel | 0.4-0.7mm |
| Power | 5.5KW |
| Width of material | Standard :137mm |
| Customized | 134mm/140mm/178mm |
| Diameter | 80-1500mm |
| Feeding speed | 1-38m/min |
| Machine size | 2600*2050*2100mm |
| Weight | 2000KG |
| Cutting system | Saw cutting /Plasma cutting |
