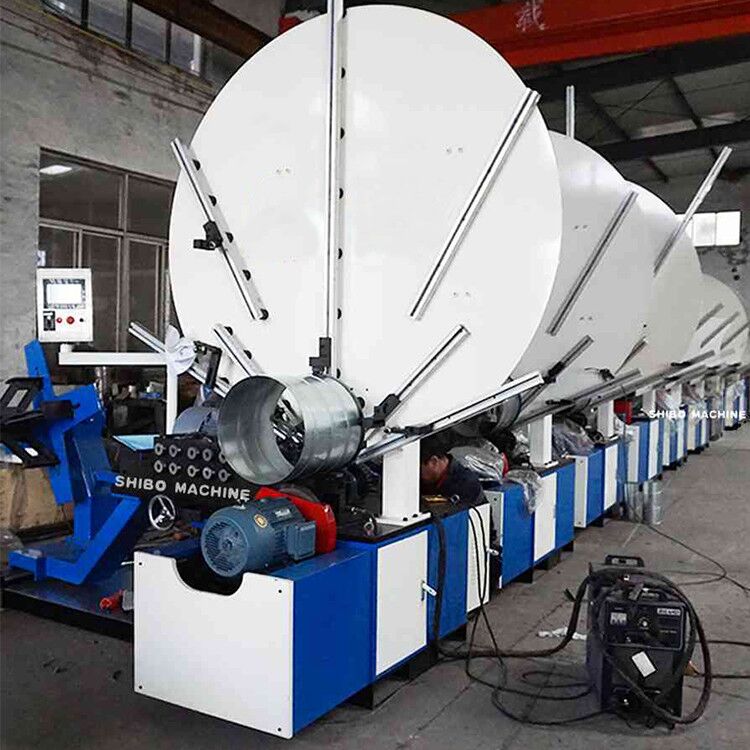

Hvac duct manufacturing machines
Main features of Hvac duct manufacturing machines
The machine is suitable for making spiral tube, pipe, duct widely used in all kinds of industrial.
such as for HVAC round ducts,oval ducts,chimney flue, gas tube.
1. Fully auto material feeding, forming, lubrication, cutting, tube loading
2. Different mould to meeting respective request,
3. High speed synchro flying cutting system.
4. Built with PLC control panel and transformer, speed could be adjusted
5.Tension controlled by air pressure, auto brake.
6. According to European standard, Certificated by CE and ISO901
|
Diameter Range |
200-2000mm |
|
Maximum Tube Length |
Unlimited mm |
|
Thickness of Strip |
0.6-2.0mm |
|
Width of Strip |
137-mm |
|
Strip Speed |
1-40m/min |
|
Suitable Material |
Aluminum, Stainless steel, Galvanized steel,etc |
|
Dimension (L x W x H) |
2650mm*1550mm*2000mm |
|
Weight |
2260kg |
|
Main Motor Power |
15kW |
|
Cutting Motor Power |
5.5kW |
|
Air Pressure |
0.5-2.0Mpa |
Hvac duct manufacturing machines
